• The use of advanced man-machine dialogue touch screen, the operation data can be adjusted storage, fault display;
  • Servo drive, digital filling volume adjustment.
  • Precision stainless steel piston cylinder processing technology to ensure accurate filling consistent, so that the seal is not easy to wear long-term operation.

Description:

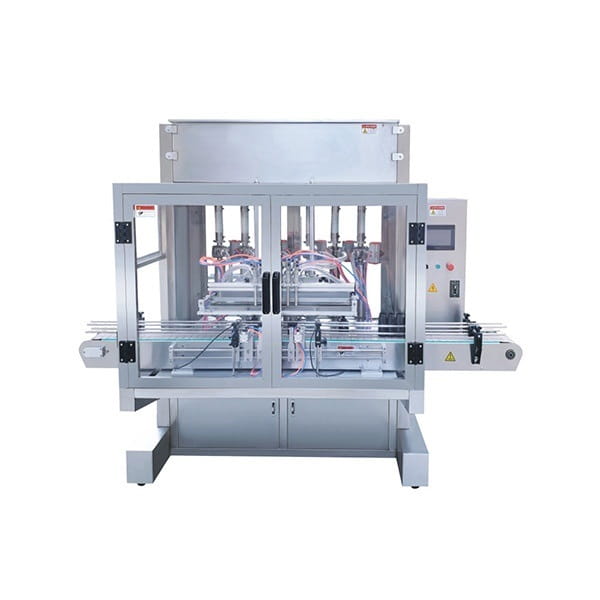

Our automatic servo filling machine is a high-efficiency, customizable solution for liquid filling. With 2/4/6/8 optional filling heads, adjustable speeds up to 100 bottles per minute, and compatibility with 220V/380V power supplies, it adapts to diverse production needs. Available in multiple volume ranges (50ml-5000ml), it ensures precise, consistent filling for various liquid products.

Technical parameters:

NameAutomatic servo filling machine
Filling head number2/4/6/8(Customized)
Filling speed0-100blts/min
Power1-10kw
Power supply220V/380V
Compressed air0.5-0.7Mpa
Model50-500ml/100-1000ml
500-3000ml/1000-5000ml
Number of filling heads2、4、6、8(Customized)

Automatic servo filling machine

The Automatic Servo Filling Machine uses servo motor-driven piston pumps instead of pneumatic or gravity systems to dose liquid, giving it much higher fill accuracy and repeatability. Each filling head is independently controlled by a servo motor, so the fill volume, filling speed, and stroke length can be precisely programmed and adjusted through a PLC/HMI touchscreen — with no manual dial or pressure adjustment needed.
